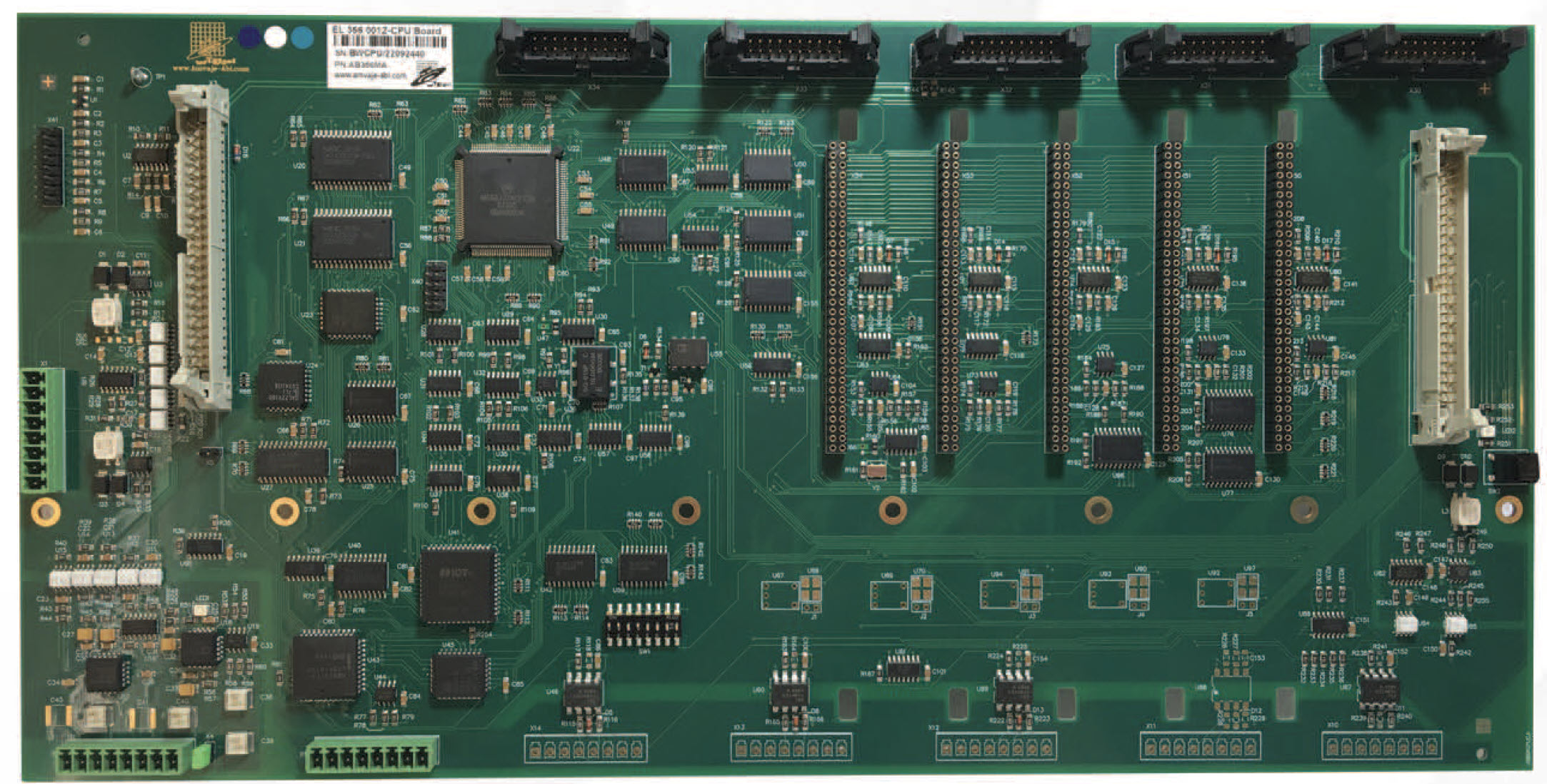

EL356 (Barmag Winder Motherboard)
- Motherboard of Oerlikon Barmag Spinning Systems and Texturing machines
- An embedded temperature sensor forces the system to reset the state when the temperature exceeds the permissible limit.
- Card self-test run, when power is connected, to force the card to reset mode in card error detection mode.
Cards and related modules
Quality Assurance for Products
Product Authenticity Guarantee
Shipping Everywhere
Responsive support
General Information EL356 (Barmag Winder Motherboard)
- Motherboard of Oerlikon Barmag Spinning Systems and Texturing machines
- Supply Voltage:
- Resolver Supply: +5V, 100mA
- Serial Interface Supply: +5V, 100mA
- Processor Supply: +5V, 500mA
- Analog Circuit Supply: +15V, 100mA
- Serial Interfaces: CAN, RS485
- Feedback Signal:
- Motor rotation information is sent to the resolver
- Traverse motion inverter signals
- Rotor inverter signals
- Touch roll inverter signals
- Operation Temperature Range: 0 C°~70 C°
- An embedded temperature sensor forces the system to reset the state when the temperature exceeds the permissible limit.
- Card self-test run, when power is connected, to force the card to reset mode in card error detection mode.
