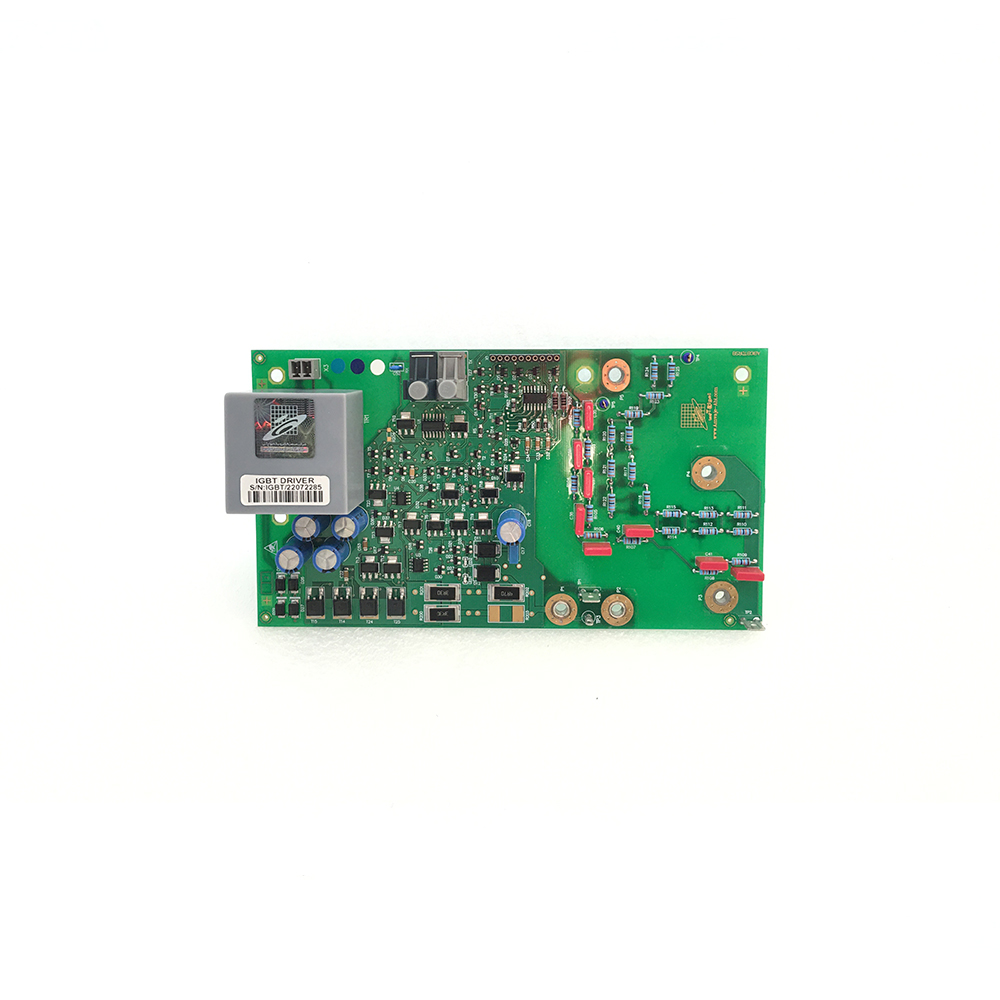

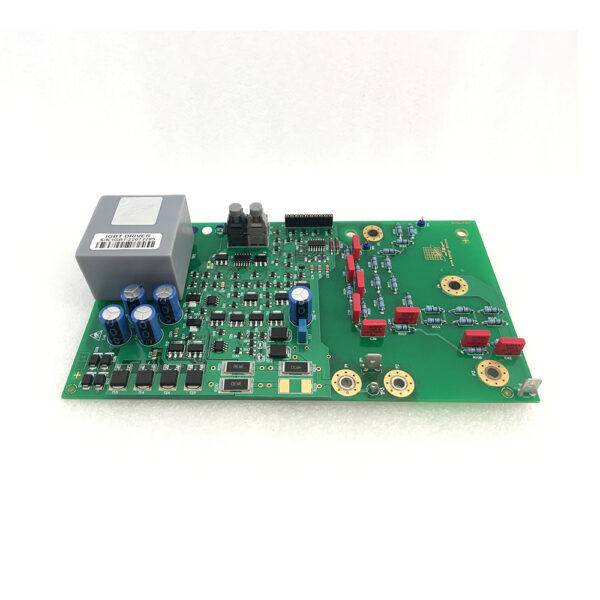

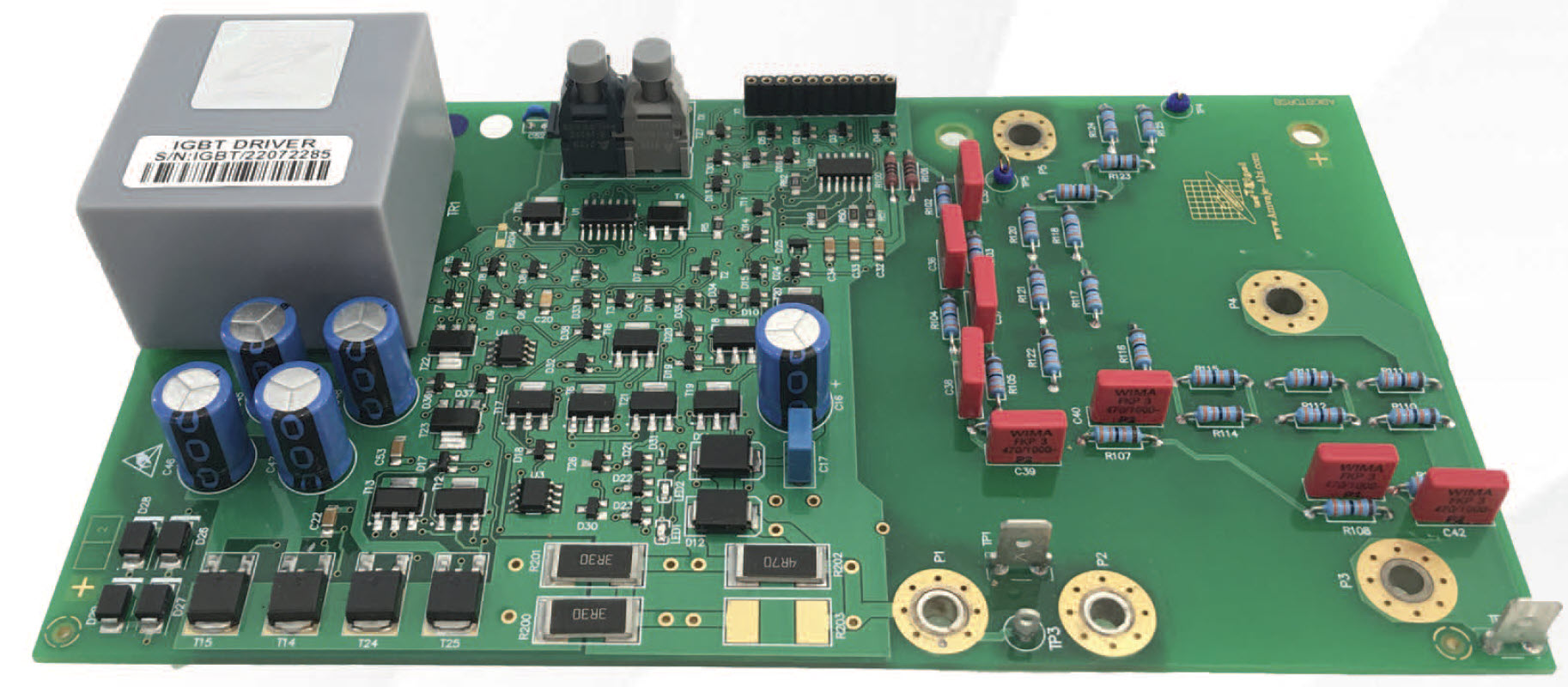

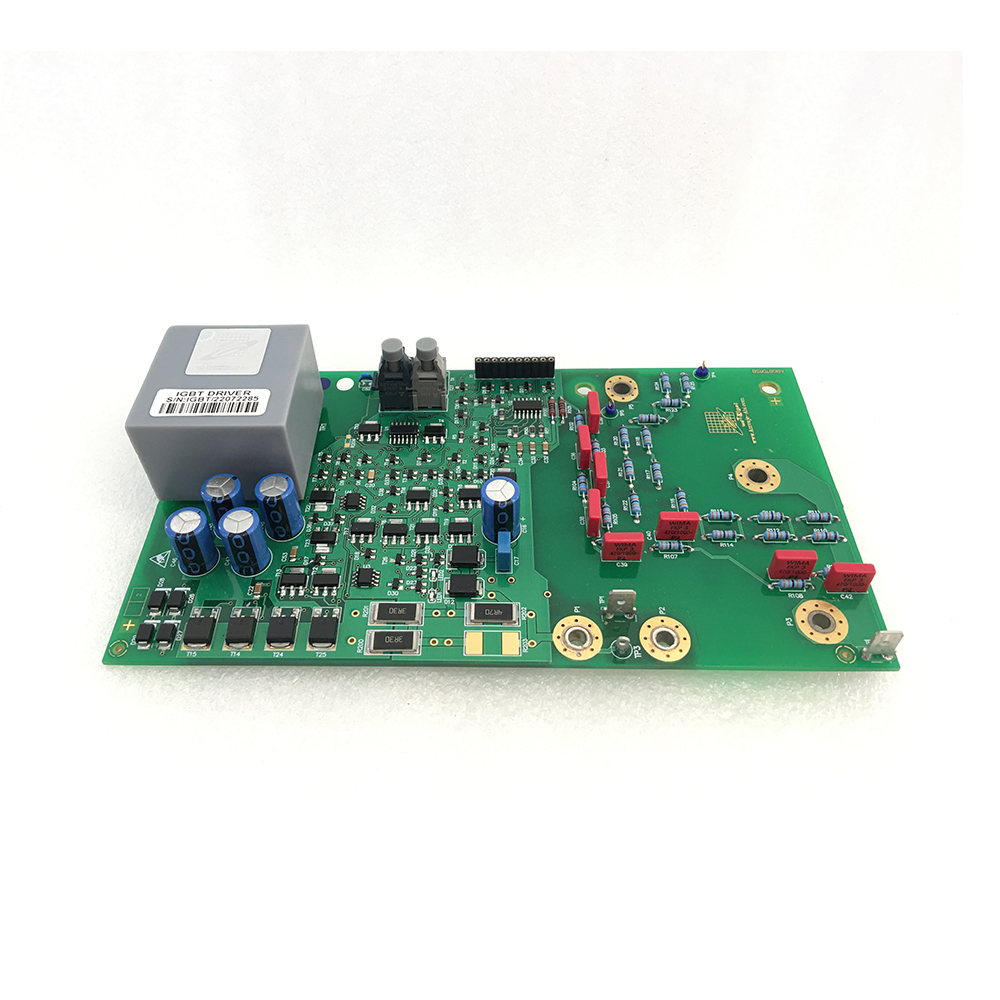

IGBT-Driver Card

  • Fully compatible with the IGBT-Driver card of the SINAMICS GM150 system
  • To drive rotating machines with medium voltage
  • To drive FZ800R33KF2C module gate and all similar IGBT modules
Cataloge
Order

Cards and related modules

عودت ارسال

Quality Assurance for Products

Product-authenticity-guarantee

Product Authenticity Guarantee

ارسال و ثبت سفارش

Shipping Everywhere

Permanent-and-continuous-support

Responsive support

General Information IGBT-Driver Card

The SINAMICS GM150 system by Siemens drives rotating machines at medium voltage. This system can be used to drive constant and quadratic loads. Examples of applications include driving various fans, extruders, mixers, pumps, compressors, and mills.



The Amvaje Abi IGBT driver is fully compatible with the IGBT driver card of the SINAMICS GM150 system. It is suitable for driving the gate module FZ800R33KF2C and all IGBT modules with similar electronic and mechanical specifications to the mentioned module.



Specifications:

  • Compatible Modules:
    • IGBT: FZ800R33KF2C
    • Ultra High Power Resistor: UXP-600
  • Power supply:
    • Pulse Power Supply
    • Frequency: 100KHz
    • Amplitude: 48 V(P-P)
    • Current:2.5A
  • Operation Temperature Range: -40°C ~ 85 C°
  • Input Command Signal & Output Feedback Signal: Optical Signal (630nm Optical Signal)
  • Delay Between Optical Command and Gate Drive:5µs
  • Gate Voltage in OFF State: -10V
  • Connection between IGBT Driver and Modules: Easy connection with M4 and M5 screws

Connection between IGBT Driver and Controller: Optical Fiber
