Smart Logic Solver(SLS)

The SLS module is one of the components of the SIS security system, which is used as an Emergency Shutdown (ESD) system.

The SIS (Safety Instrumented System) safety system is a modern approach to increasing safety and integrity while improving process availability. This system continuously monitors the safety equipment installed in the plant and detects the health of the entire safety loop, thus significantly reducing risk. While independent of the control system, the SIS system is easily integrated with the DCS system, thus making the installation simpler and less expensive.

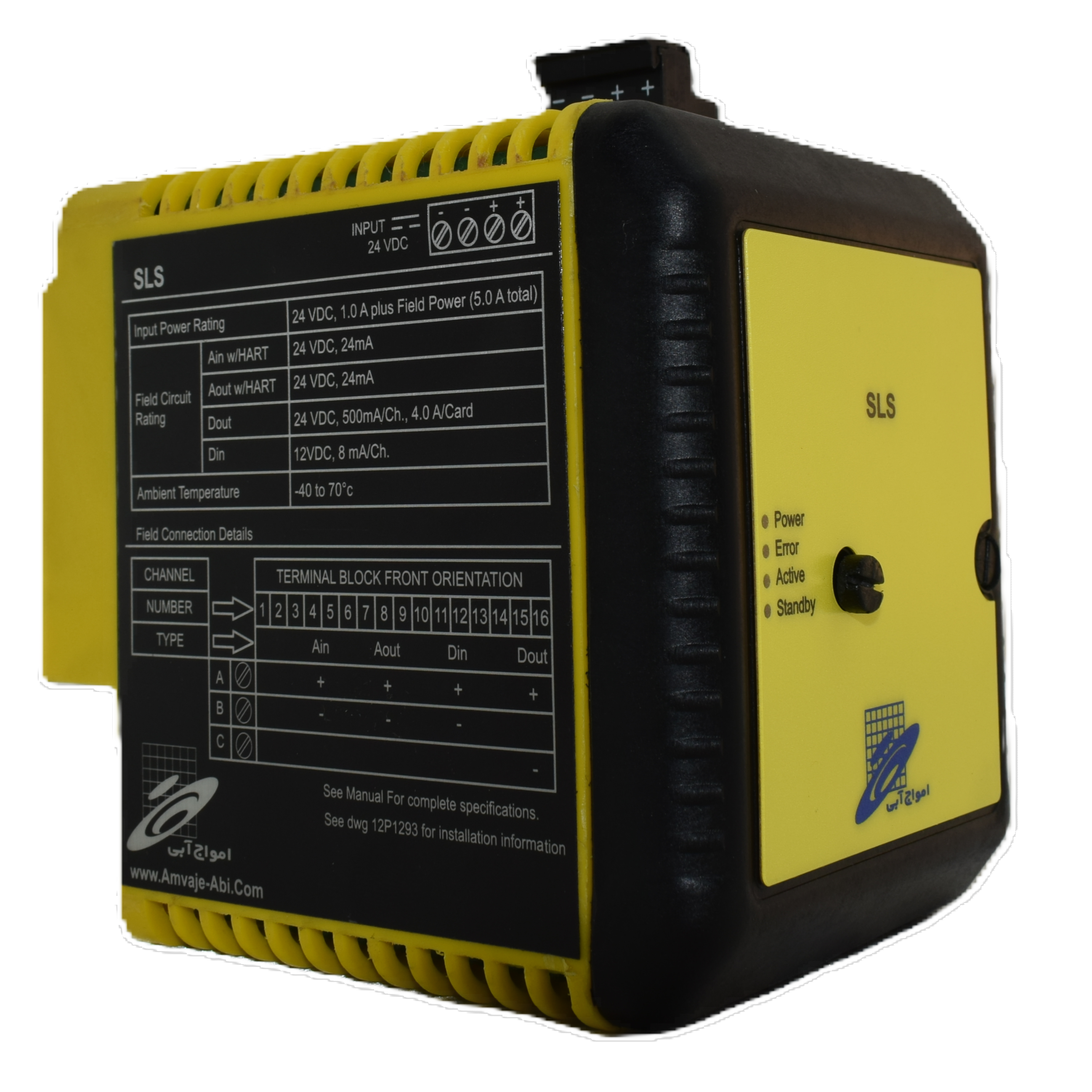

Smart Logic Solver, SLS Card Specifications:

• Input Power : 24VDC+ 20%, 1.0A Plus Field Power (5.0A Total)
• Number Of Channels: 16 Configurable Channels
• Isolation: Each Channel Is Optically Isolated From The System And Factory-Tested To 1500VDC
• Analog Input Channel Specifications:
  • Nominal Signal Span: 4 To 20 mA
  • Hart Protocol Support
  • Resolution: 16 Bits
• Hart Two-State Output Channel Specifications:
  • Nominal Signal Span: On State 20 mA / Off State 0 Or 4 mA (Configurable)
  • Hart Protocol Support
  • Compliance Voltage: 20 mA Into 600 Ω Load
• Discrete Input Channel Specifications:
  • Detection Level For On ≥ 2 mA / Detection Level For Off ≤ 1.65 mA
  • Input Compatibility: Inputs Compatible With Namur Sensors (12 V)
  • Dry Contact Line Fault Detection
• Discrete Output Channel Specifications:
  • Output Voltage: Field Power Minus 2 V
  • Field Power: 0.5A Continuous Per Channel; 4.0A Max Per Card
  • Short Circuit Protection: Outputs Current Limited To 2.0 A Typical
