Amvaje Abi Distributed Control System(DCS)

• The Amvaje Abi Distributed Control System (DCS) is a fully digital system that provides users with a unified architecture and complete functionality. It offers multiple inputs and outputs ranging from several to tens of thousands to interconnect individuals, processes, and production.
• This intelligent integration provides a suitable infrastructure for advanced applications, resulting in improved efficiency and fewer undesirable changes in the process. The Amvaje Abi DCS system is designed for the most challenging working conditions and incorporates state-of-the-art world technology.
• The comprehensive hardware and advanced software of the Amvaje Abi Distributed Control System are fully compatible with Emerson’s DeltaV Distributed Control System (DCS).
• Amvaje Abi DCS has been successfully implemented in Iran’s largest and most important refineries and petrochemical plants, including the Pars South Gas Complex, Amir Kabir Petrochemical Complex, Khangiran Refinery, Ilam Refinery, and Shazand Oil Refinery.

The key features of this system include:

• Full Redundant System: The system, including controllers, IO cards, and network communication, has redundancy capabilities.

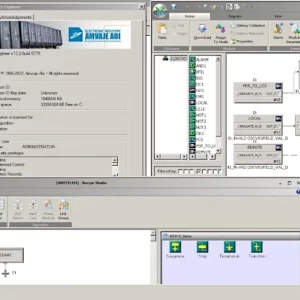

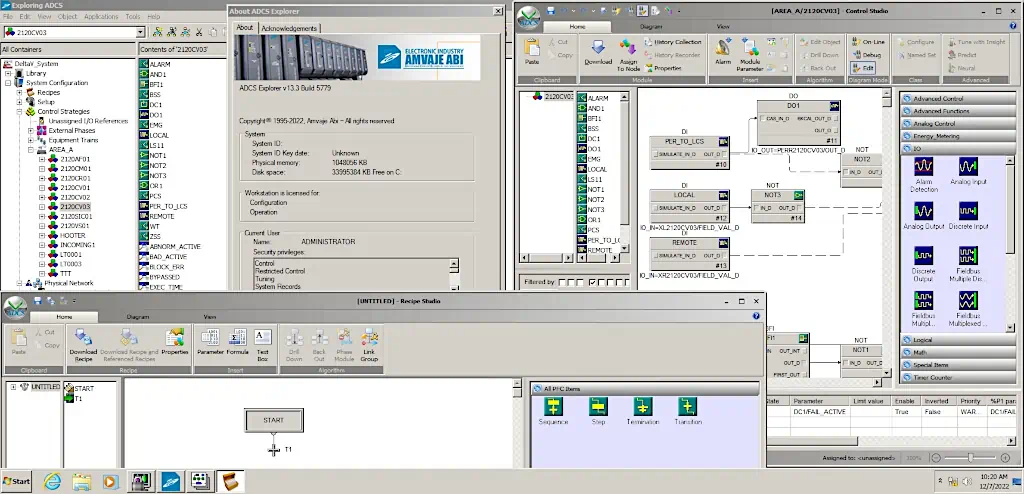

• Integrated and User-Friendly Engineering and Monitoring Software
• Standard Ethernet network communication at 100 MB/s full duplex
• Controller upgrade capability, using the existing engineering software upgrade program without requiring firmware.
• Automatic identification of I/O cards using Auto Sense capability
• Hot Swap technology for replacing or adding cards online without the need to shut down the entire system
• Cold Restart technology based on Flash as a replacement for Battery Backup
• Supports various industrial protocols
• Complete hardware and software with the ability to provide licenses compatible with DeltaV software.

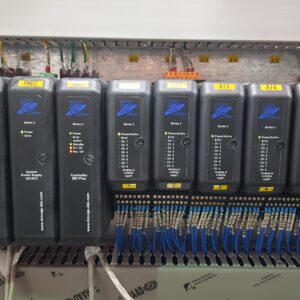

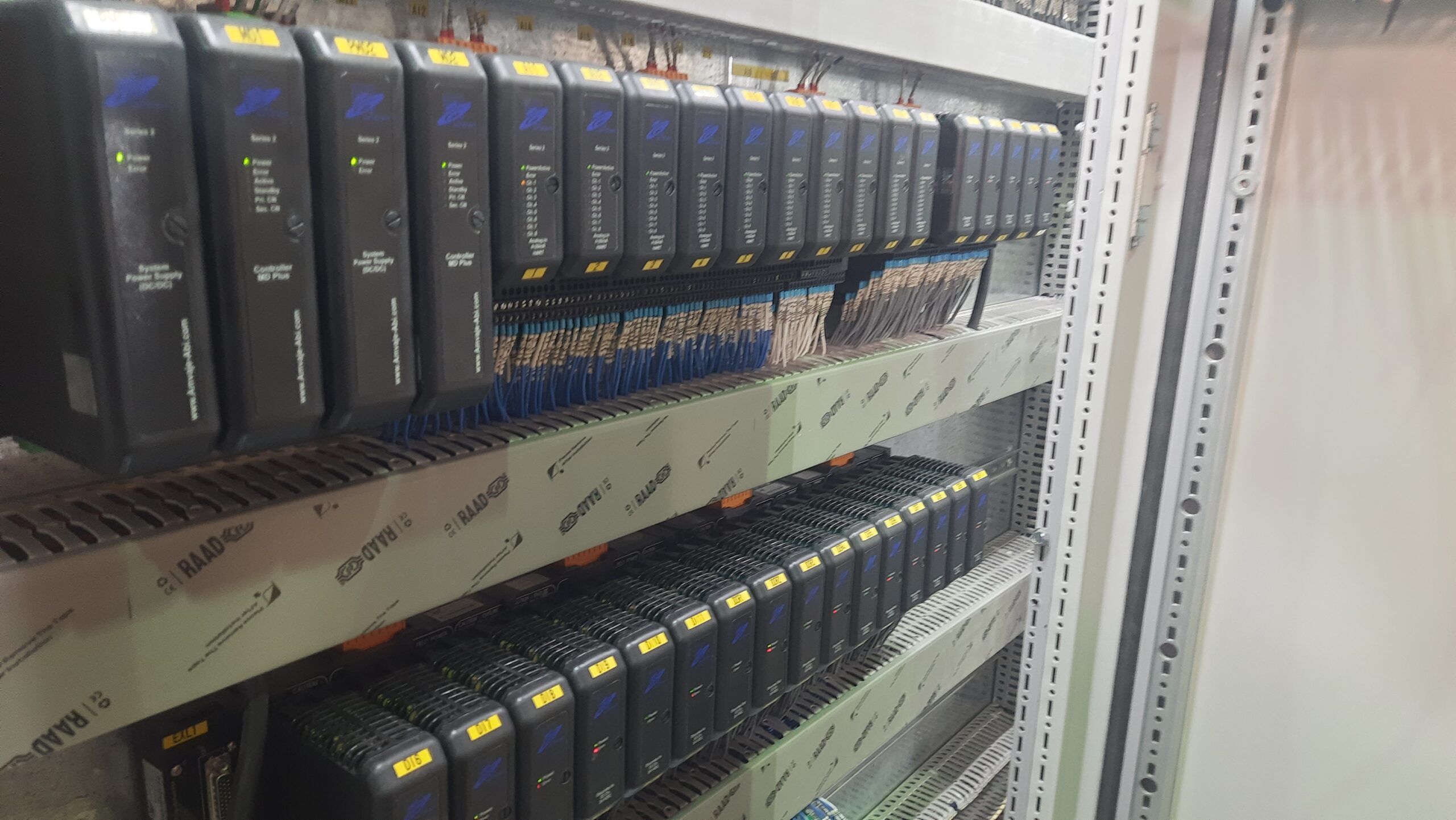

The most important Modules of this device include:

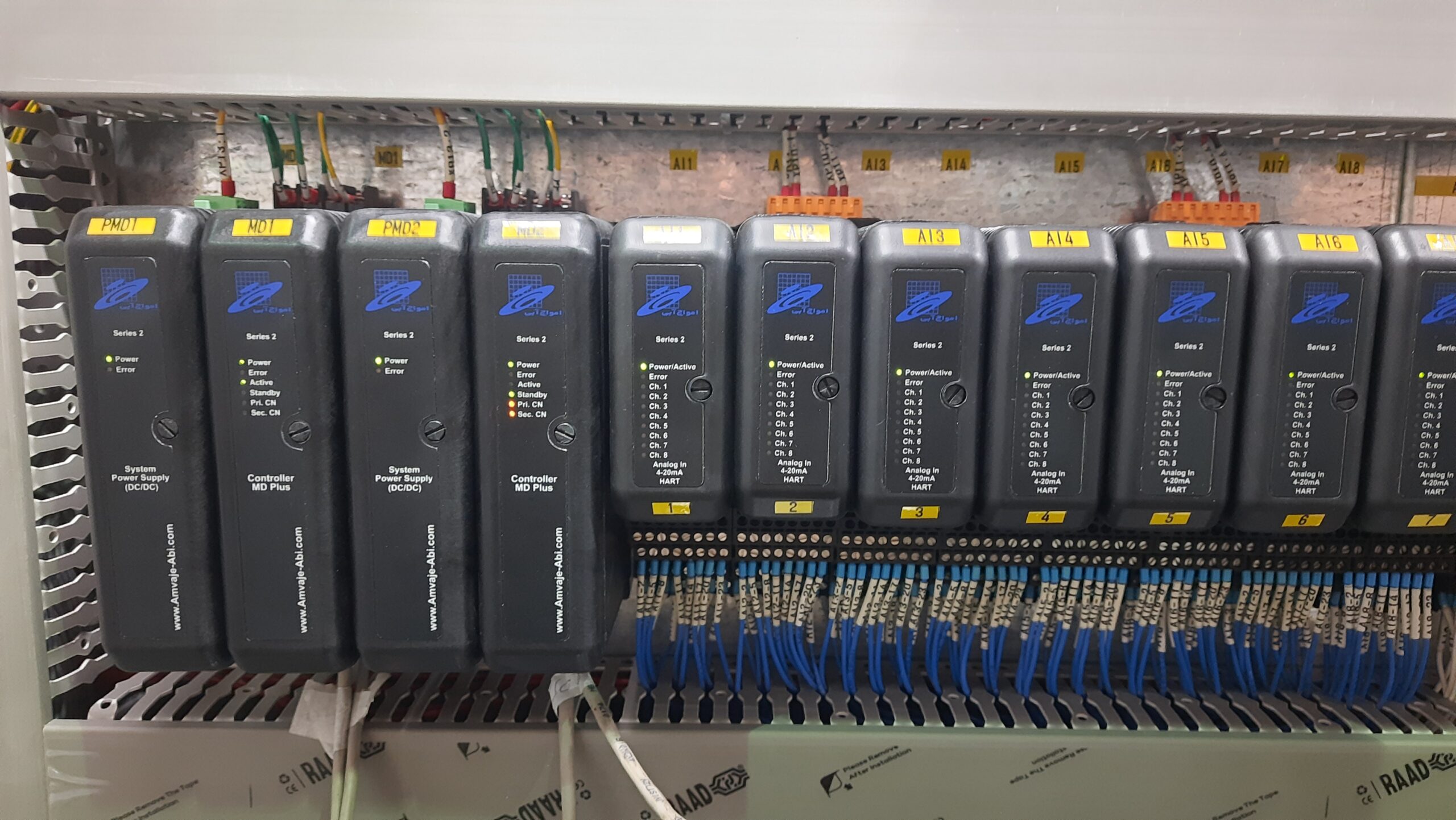

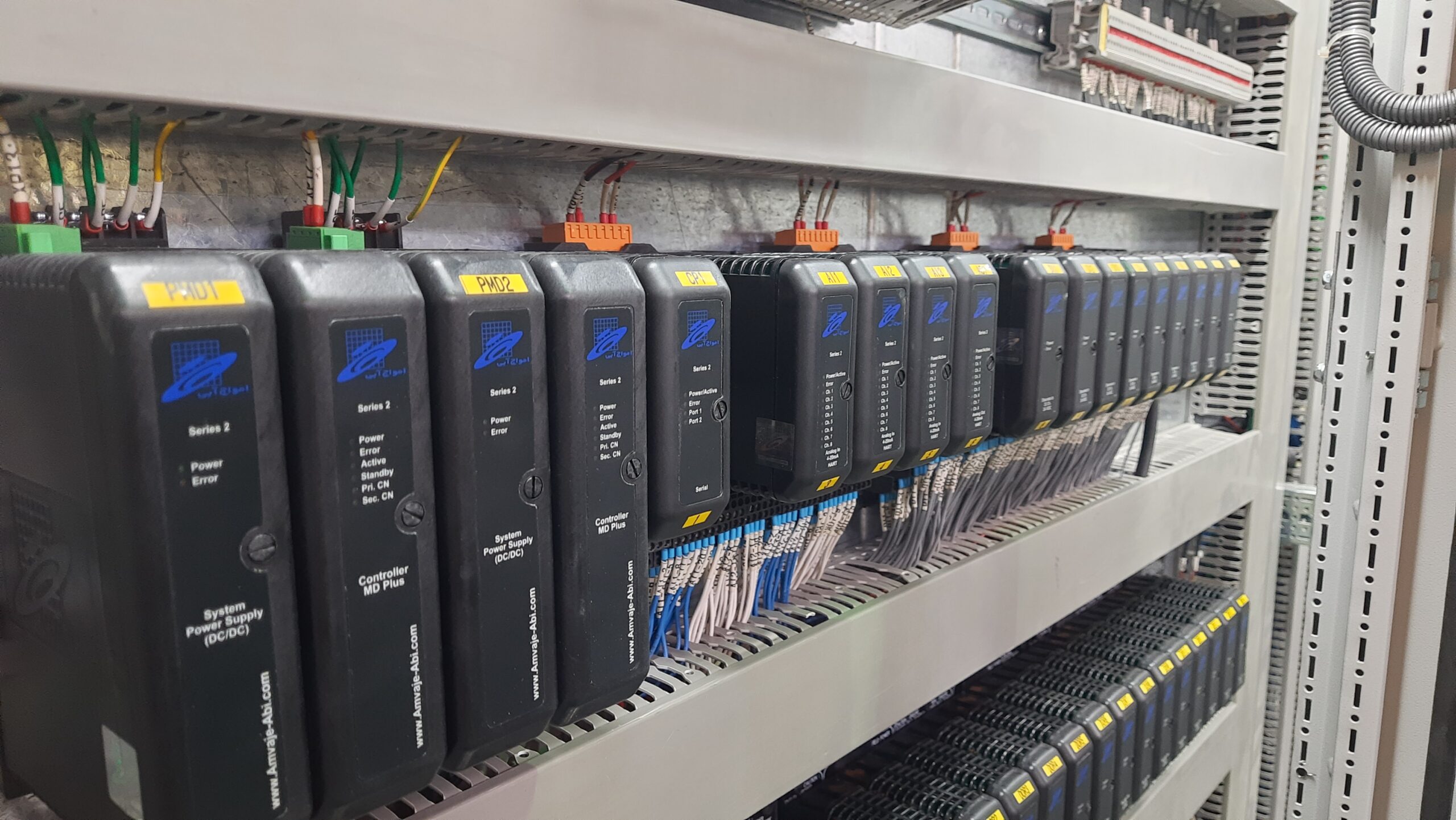

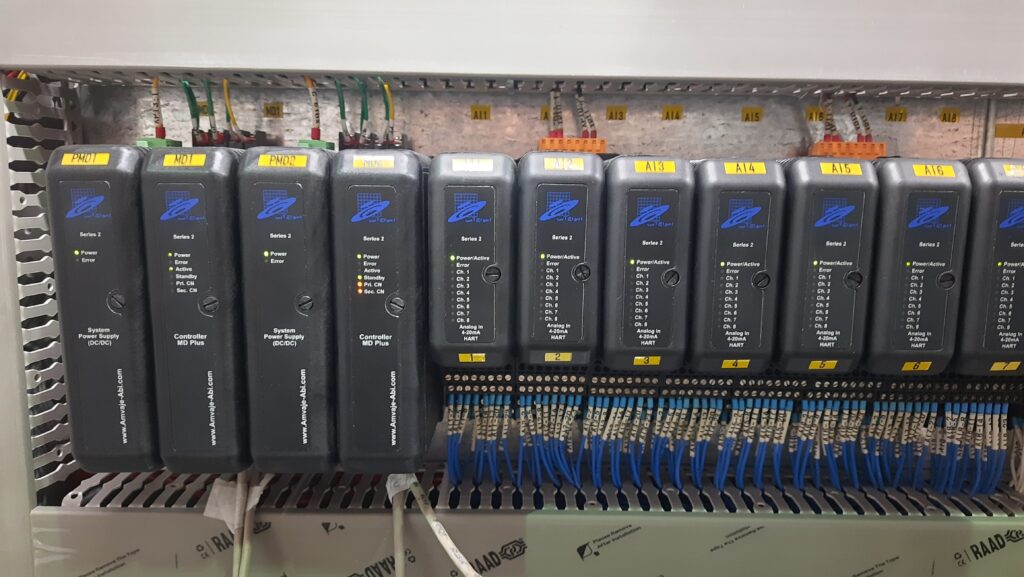

1. Controllers: Control MD, MD Plus.
2. I/O Modules, including:
   • Analog input 4-20mA HART – Series 1, 2.
   • Analog output 4-20mA HART – Series 1, 2.
   • Discrete Input Dry Contact (8 channels & 32 channels).
   • Discrete Output High Side 24VDC (8 channels & 32 channels).

3. Carriers:
   • 8-wide I/O Carrier,
   • 2-wide Carrier,
   • carrier extensions.
4. Power supply: DC-DC Converter 24/12VDC.
5. Industrial control modules: Modbus, Fieldbus H1.

For more information on this product, please refer to the product catalog.
